Rheem Complete Split System Straight Cooling 3 Ton 13 SEER

Short Desc.: Outside condenser and Inside Air Handler

CONDENSING UNITS:

DIMENSIONS:

• 27-15/16 Height
• 31-5/8 Width
• 31-5/8 Depth

When you look at these many features, you’ll see our Value Series 13-SEER Air Conditioners featuring R-410A refrigerant deliver quality and value.

CABINET OPTIONS: Choose between a painted louvered steel cabinet or mesh wrap.

FAN MOTOR MOUNT: The motor mount extends the service life of the fan and motor while reducing sound and vibration. Air is discharged upward away from bushes and shrubs. The discharge pattern of the top grille provides minimum air restriction, resulting in quiet fan operation.

BASE PAN: The base pan encourages drainage of condensation while reducing corrosion.

EASY SERVICE ACCESS: All controls are accessible by removing one service panel. Removable top grille provides access to the condenser fan motor, compressor and condenser coil.

Specifications:

• 13 SEER
• Efficiencies up to 14.5 SEER/12.80 EER
• Nominal Sizes: 1.5 to 5 Tons
• Cooling Capacities: 18,200 to 58,000 BTU/HR

Warranties

• Parts Warranty: 5 Years
• Compressor Warranty: 10 Years
• Conditional Parts Warranty - 10 Years (Registration Required)

• Compressor Warranty - 10 Years and Limited Parts Warranty - 5 Years

 Documents:

Consumer Literature   Sales Fact Sheets   Specification Sheets    Submittal Sheets

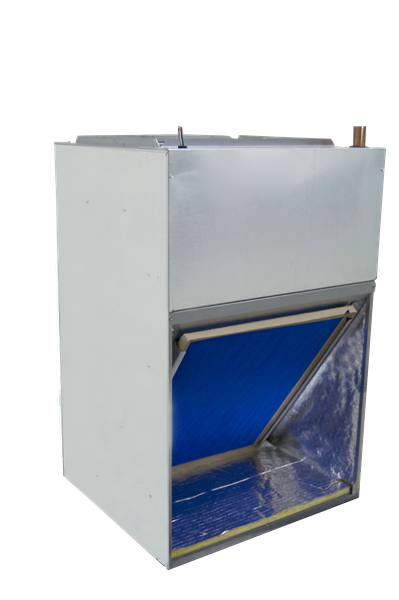

AIR HANDLER UNIT:

DIMENSIONS:

• 36 Height
• 24 Width
• 21 Depth

FEATURES:

• Front or Bottom Return (Kit required for bottom return applications)
• Available with flow-check pistons or TXV's factory installed
• Wall hanging brackets are included
• Built-in filter rack and standard size filters
• Suitable for R-410A or R-22 refrigerants (RHAL only), shipped from factory for R-410A applications
• AHRI Certified
• UL Certified
• Molex plug connections for field installed heater kits
• 208/240 Direct Drive blower motors with multi-speed
• Thermoplastic Drain Pan with bottom primary and secondary connections
• Optional factory installed condensate float switch  (Option 417)

Specifications:
